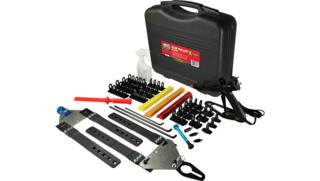

Up Close: Dent Fix Equipment Glue Puller Xtreme, No. DF-GPX
Application
The Dent Fix Equipment Glue Puller Xtreme, No. DF-GPX, is capable of both aluminum and steel pulling. It utilizes large glue pads with heavy duty glue to pull and straighten damaged areas on external sheet metal. A pulling device is needed which most shops will have or can be sourced separately to increase the order value.
Origin
During the repair process, it’s crucial to save as much of the OEM corrosion protection coating to the steel panels applied by the manufacturers because this coating is difficult to replicate outside of the factory. When the damage is in an area of the vehicle with no access to the backside of the panel, Dent Fix determined performing a glue pulling first would be a safe and efficient way to complete the repair. This repair method decreases the amount of heat put into the panel, saves as much of the protective coating as possible, and reduces the risk of corrosion to the repair area in the future.
Features and Benefits
- Performs repairs on major panel damage with minimum tear down, prep, clean up, and damage to the vehicle.
- Allows the user to pull panels without removing paint or other parts.
- Won’t damage OEM corrosion protection coating.
- Eliminates the need to weld pull tabs onto the vehicle.
- Enables users to glue tabs and pull without the high temperatures of welding which can be ideal when working with heat sensitive ultra-high strength steels.
Manufacturing/Engineering Specifications
- Glue gun: 12V
- Glue type: heavy duty
- Five-ring tabs: four
- Four-ring tabs: four
- Three-ring tabs: four
- Two-ring tabs: three
- One-ring tabs: three
- Knock down tool: four heads
Demonstration
Information provided by Dent Fix Equipment
